Description

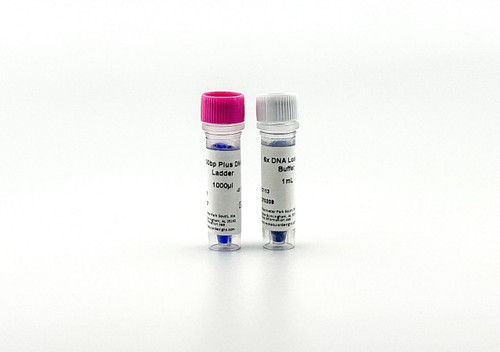

100 bp Plus DNA Ladder (M111) is a ready-to-use DNA molecular weight marker containing 13 distinct fragments spanning 100 to 3000 base pairs, an extended range compared to standard 100bp ladders, making it suitable for both small fragment analysis and larger PCR products in a single marker. The 500bp and 1500bp bands carry increased DNA mass to serve as visual reference points for quick size orientation on the gel.
Technical Specifications:
- Size range: 100-3000 bp
- Number of fragments: 13
- DNA content: Minimum 30 ng per band
- Loading concentration: 500 ng/6 µl
- Volume: 1000 µl
- Enhanced reference bands: 500 bp and 1500 bp
Loading Buffer Components:
- 10 mM Tris-HCl
- 1 mM EDTA (pH 8.0)
- 0.02% Bromophenol blue
- 0.02% Xylene cyanol
- 5% Glycerol
Storage and Usage:
- Store at -20°C
- Standard loading volume: 6 µl
- Loading volume adjustable based on well size
- Compatible with standard agarose gels
- Ready-to-use format
Research Applications:
- DNA fragment size determination
- PCR product analysis
- Restriction digest analysis
- Molecular weight estimation
- DNA quantification
